Center leg mounting bracket 02

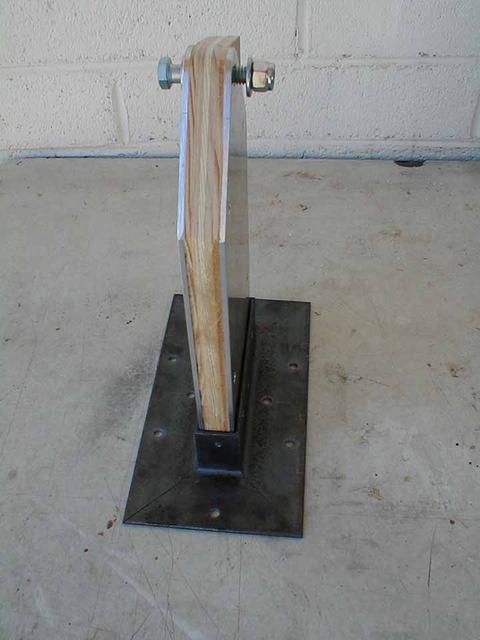

The center leg is made of 3/4" plywood sandwiched between two pieces of 1/8" sheet aluminum.
