JAGHinge8

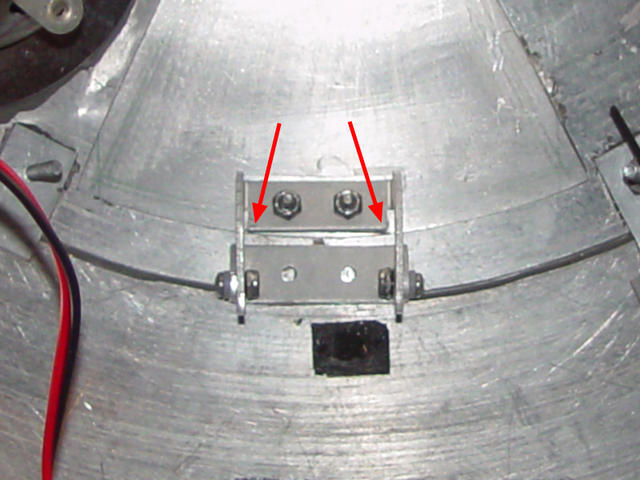

Second Attempt - moved hinge lower to prevent pie panel from hitting dome at the end of the swing but the base of the hinge interferes in the opening.

Date: 12/20/2008
