Leg Strut Piston

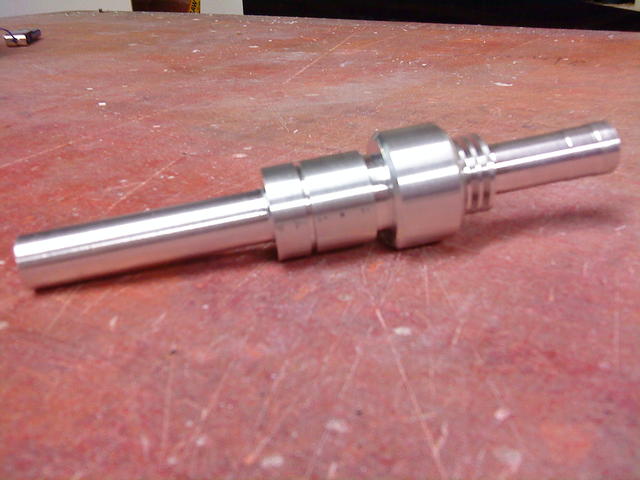

These were made on the 25/6/08. They are one piece turned down from aluminium bar. The lower part of the leg strut will just be a tube which this piece fits inside.

Date: 06/25/2008
